Honda Ignition Zener Diodes for CB600 CBR900 CR250 and others

After tracing down a no spark condition to the ignition switch I found this Zener diode to be the root of the issue. I had replaced the ignition switch with another purchased online that did not contain it. The Honda ignition switch contains this Zener diode as an anti-theft device to kill the ignition system at the ecu preventing spark and fuel.

I kept my aftermarket ignition switch, traced the wiring back to the ecu and installed my diode. I put it on the pink wire from the ecu with the diode pointing toward the ignition switch.  The “block” is from the ignition to the ecu.

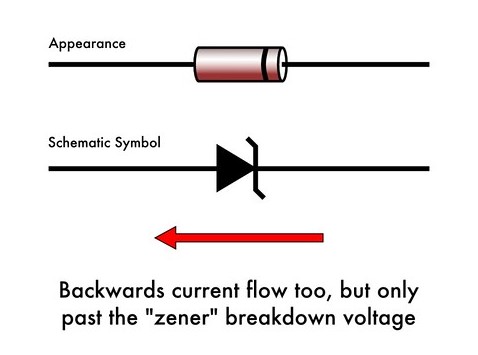

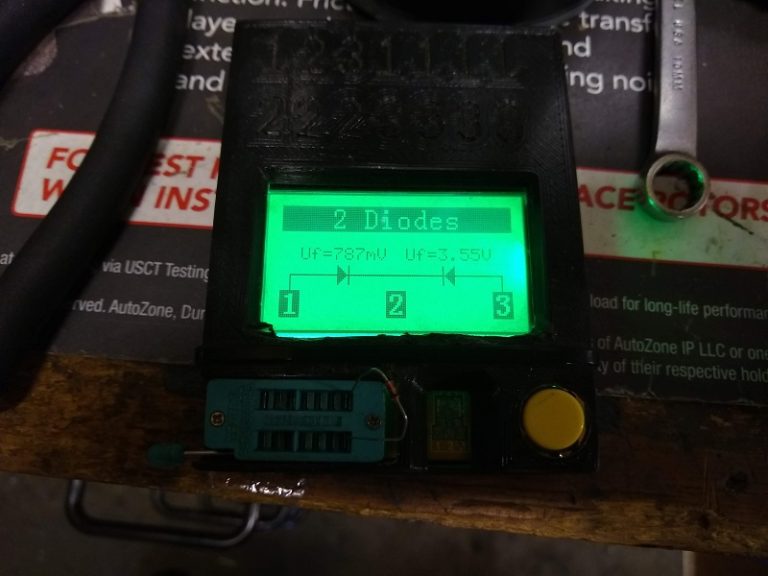

Here’s another visual of this zener in action and how it is preventing current flow, that is until it hits the breakover voltage.  To learn more about zener diodes I recommend visiting this article from the university of Oklahoma.  https://www.nhn.ou.edu/~bumm/ELAB/Lect_Notes/diodes_lecture_v1_2_2.html

Here’s some AI info I found useful in explaining how they work.

🔋 Understanding the Zener Diode & Reverse Breakdown Voltage
A Zener diode is a special type of diode designed to reliably operate in reverse breakdown—something regular diodes try to avoid. Let’s walk through how it works and why that breakdown point is actually its claim to fame.

⚙️ Reverse Breakdown Voltage Defined
– The reverse breakdown voltage (also called the Zener voltage) is the precise voltage at which the diode begins to conduct in reverse bias.
– Unlike regular diodes that might get damaged at this point, Zener diodes are engineered to handle it safely.

🚀 How a Zener Diode Uses It
When reverse biased (negative voltage applied to the anode and positive to the cathode):
– Below Breakdown Voltage
– The Zener diode acts like a regular reverse-biased diode: it blocks current flow.
– At Breakdown Voltage (Vz)
– The diode begins conducting in reverse.
– It maintains a steady voltage (Vz) across itself, regardless of increases in current.
– This voltage regulation is incredibly useful!
– Why It Works
– Breakdown is due to quantum tunneling (Zener effect) at low voltages and avalanche multiplication at higher voltages.
– The diode’s internal structure controls which effect dominates and what breakdown voltage it exhibits.

🧪 Applications
Zener diodes shine when you need:
– Voltage regulation (e.g., keeping 5V stable across a load)
– Reference voltages in circuits
– Overvoltage protection
